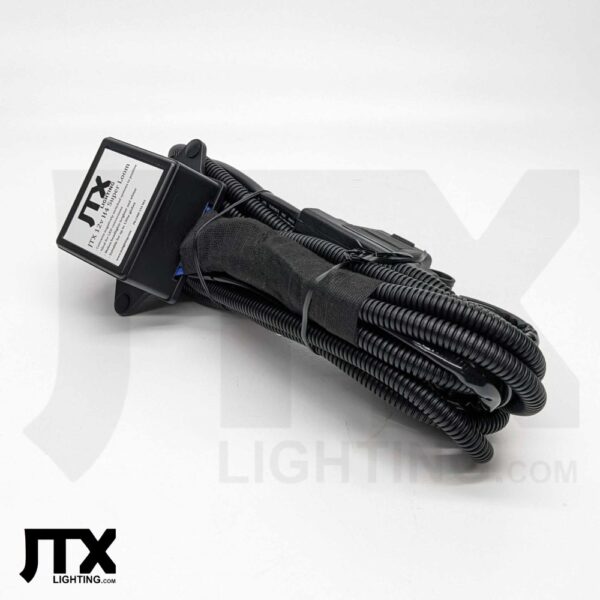

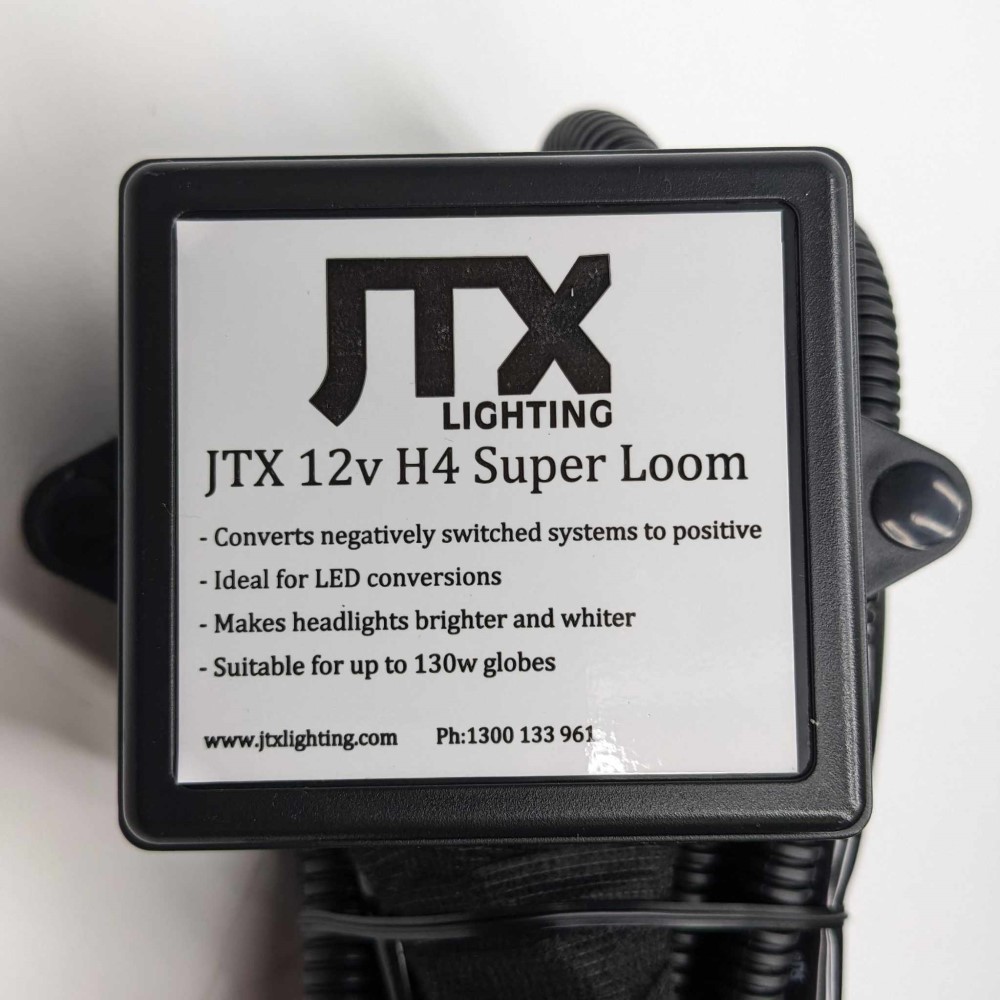

This is a 4 banger loom – it will do 4 x headlights. If you only have 2 x lights then just ignore the spare headlight sockets this loom offers.
This loom will fix all of the following:
- Negative or Earth switching (which all toyotas have).
- Reverse polarity issues.
- Blue hi-beam dash light.
- Spotties not coming on in high beam.
- Some cars have computers polling to test loads and these satisfy those computers too.
- Brighten globes by providing heavy duty fat power and earth wiring to globes so you can run hi wattage globes up to 150w . Even standard globes will run a lot brighter.
So this does everything and that’s why we call it the super loom.
No matter what brand of LED or even HID you are trying to use, if you have a Toyota or a Suzuki then you do need this and is all you need.
The installation process is dead easy and takes just 5 minutes.
- It has one plug that goes into one of your old headlight sockets. That’s how the controller in the harness receives the message that the lights are on and in high or low beams.

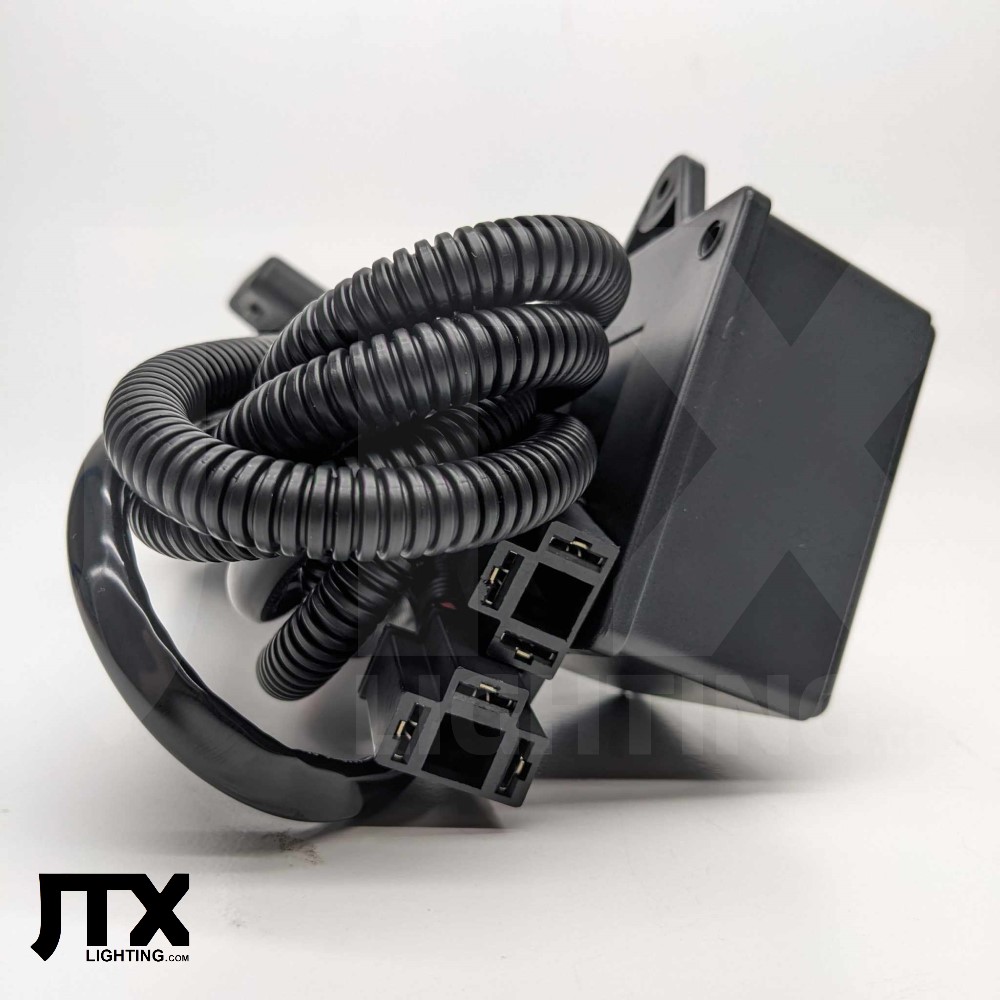

- The loom presents you with 4 new headlight sockets, one for each light.

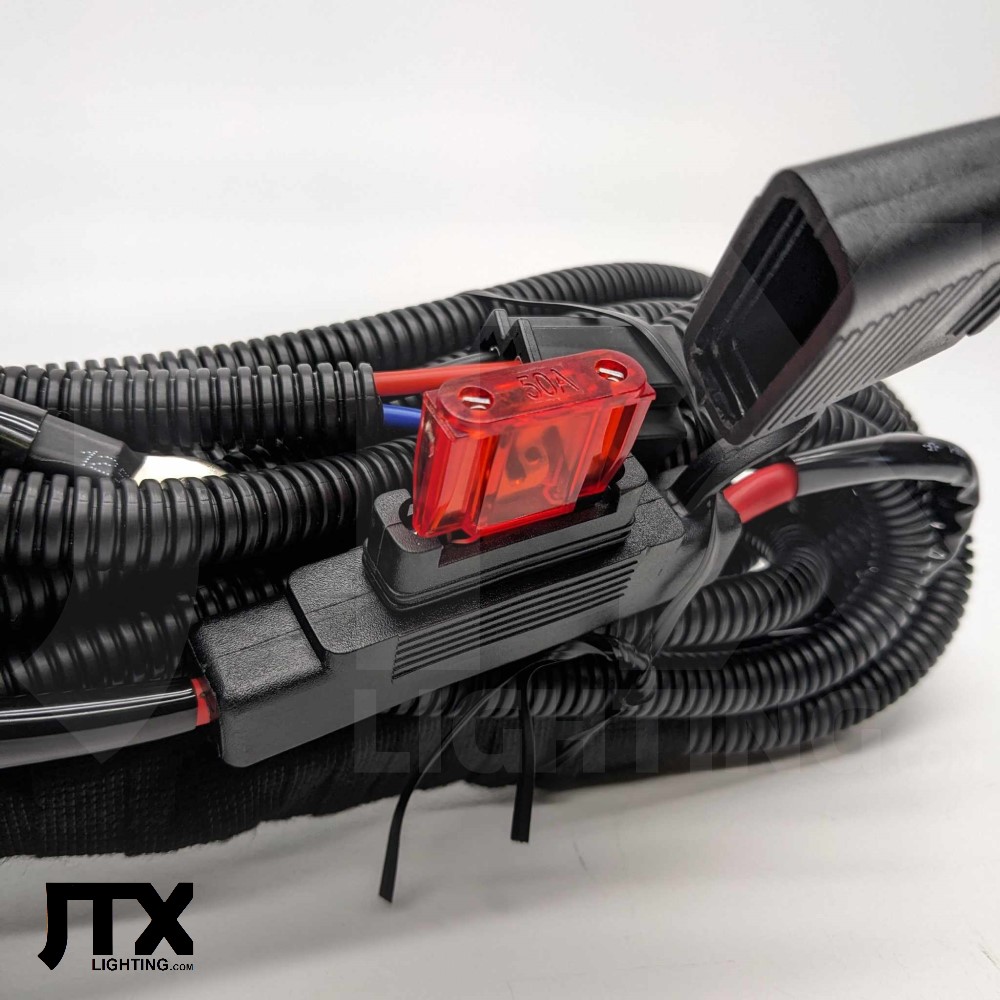

- The loom has wire with a 50 Amp massive maxi fuse going to +ve on the battery. You wont need any larger fuse for LED.
- The loom has an earth wire that can go to an earth on the body or to -ve on the battery.
It’s the ultimate headlight problem solver
