JTX Toyota CANBUS Module (Pair)

(20 customer reviews)

AUD$ 85.00AUD$ 95.00

LED and HID lights draw less power than standard lights. Some cars have a computer or a system by which it looks for a reasonable load to assume the headlights are working. These aim to solve that. These JTX units are more than just canbus and also address earth switching as well. All Toyotas need these as they need more than just canbus.

These SMART modules by JTX don’t just do canbus but also fix negative or earth switching issues.

To eliminate confusion we set out to make these as fool proof as possible. Simply plug these into the old headlight sockets.

These now fix all of the following …

  • Negative or Earth switching which all toyotas have
  • Reverse polarity issues
  • Blue hi-beam dash light
  • Spotties not coming on in high beam
  • Some cars have computers polling to test loads and these satisfy those computers too.

No matter what brand of LED or even HID you are trying to use, if you have a Toyota, Suzuki or old Datsun then you do need these. Every Toyota known to man (even yours) came out with negative switching and even today the new models still have it.

You need 1 module per light. This listing is for 2 modules. If you have 4 lights you will need a second set.

If you are running DRL Halo those need an earth and some cars (not all) have no earth to the inner high beam lights unless they are turned on. That means the Halo will struggle so the trick is to join the earth wire at the inner light to the earth wire of the outer light.

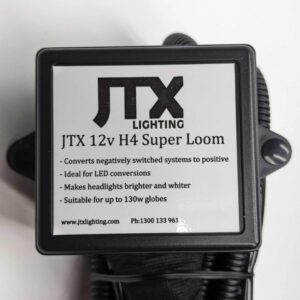

JTX also sell Superlooms that address all of the above as well – in fact the superlooms offer new earth to the lights and operate them like a conventional car would so there is no issues with the inner DRL not working. Here are the links to the 2 JTX Superloom options….

Note a select few cars need a superloom as well as the JTX Load module and whan that happens JTX are there to help you out – please be sure to fit the JTX  Load Module to the old factory headlight sockets and not between the harness and the lights. Otherwise the car wont know they are there.

Weight 0.25 kg
Dimensions 10 × 10 × 5 cm
Voltage

12V, 24V

20 reviews for JTX Toyota CANBUS Module (Pair)

  1. Anonymous (verified owner)

  2. Callum (verified owner)

    Haven’t fitted these as yet but they seem to be of good quality

  3. Yvette A. (verified owner)

    No complaints- just thanks thanks thanks!

  4. Jason Williamson (verified owner)

    Has not bought the high beam light on the dash

  5. Ricky B. (verified owner)

  6. Corrie Williams (verified owner)

  7. Mark Fisher (verified owner)

  8. Jesse Svendsen (verified owner)

    They fixed the high beams but my spotlights don’t work at all and now have to rewire everything

  9. Jack Dennis (verified owner)

  10. Kevin Archer (verified owner)

    Super helpful wish it was more obvious when buying they were required however

  11. Anonymous (verified owner)

    They work extremely well and put up with what ever I drive through

  12. Ethan w. (verified owner)

    the worked well nice and tight so they don’t rattle off lots of wire for putting the where you want

  13. Timothy Schulz (verified owner)

    Worked as discussed. Very happy.
    Cheers, Tim’s Mechanical & Maintenance Services

  14. Jay (verified owner)

    Worked well for my 73 Toyota Coaster!

    Image #1 from Jay
  15. Samuel J. (verified owner)

    Easy to use and wire up and happy with the way it all went together

    Image #1 from Samuel J.
    Image #2 from Samuel J.
  16. Wil Greig (verified owner)

  17. Mark Hooper (verified owner)

    Works well

  18. Michael H. (verified owner)

    I didn’t wind up using the modules, as I had already made my own, but they would certainly make retrofitting a breeze.

  19. Jason Young (verified owner)

    Perfect solution to high beam indicator not coming on and Fog Lights not working in an 80 Series! Jus plug one into the spare High beam plug and all problems solved!

  20. Anonymous (verified owner)

    Amazing
