If your car is negatively switched, please select the option to be supplied with 4 JTX Smart CANBUS Modules for free.

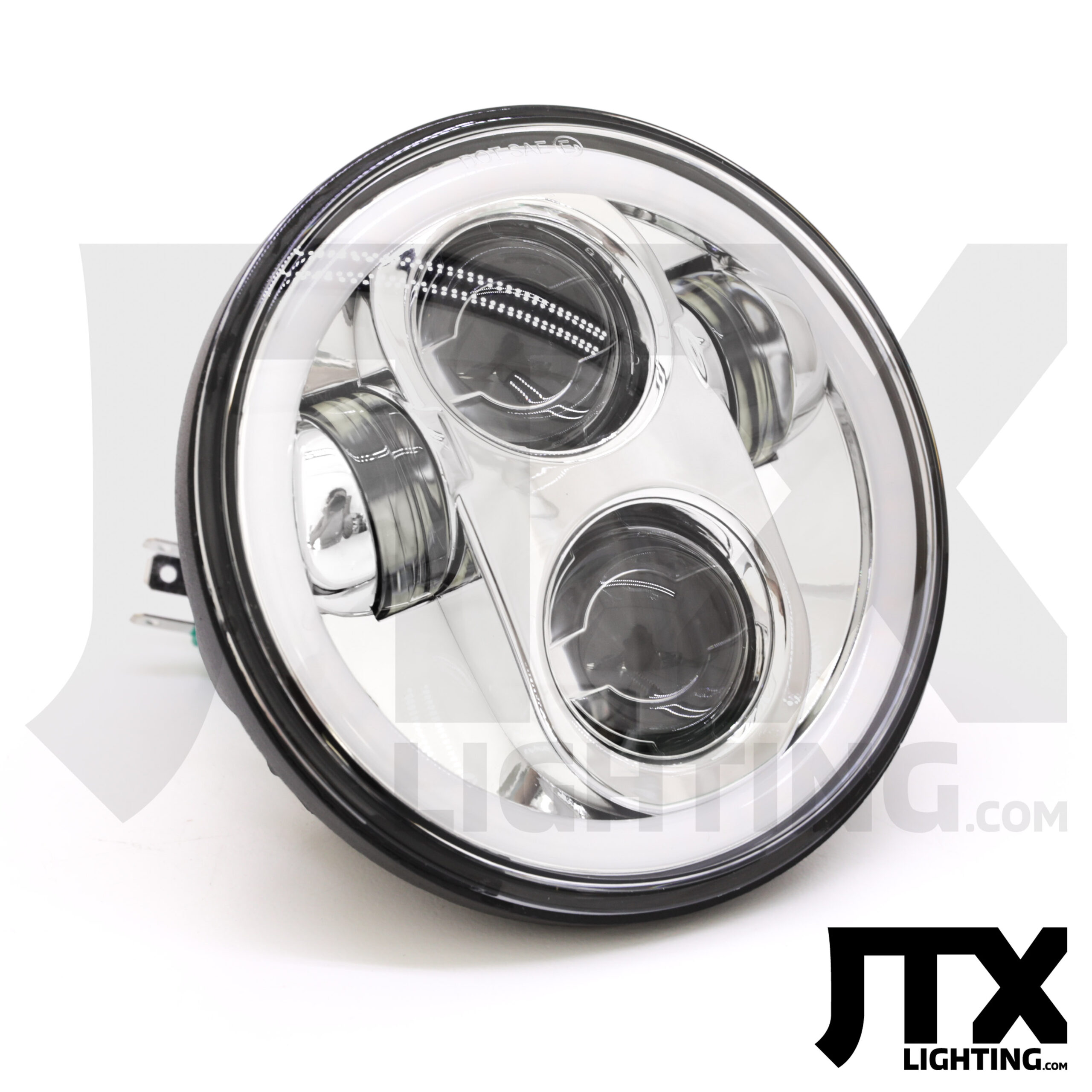

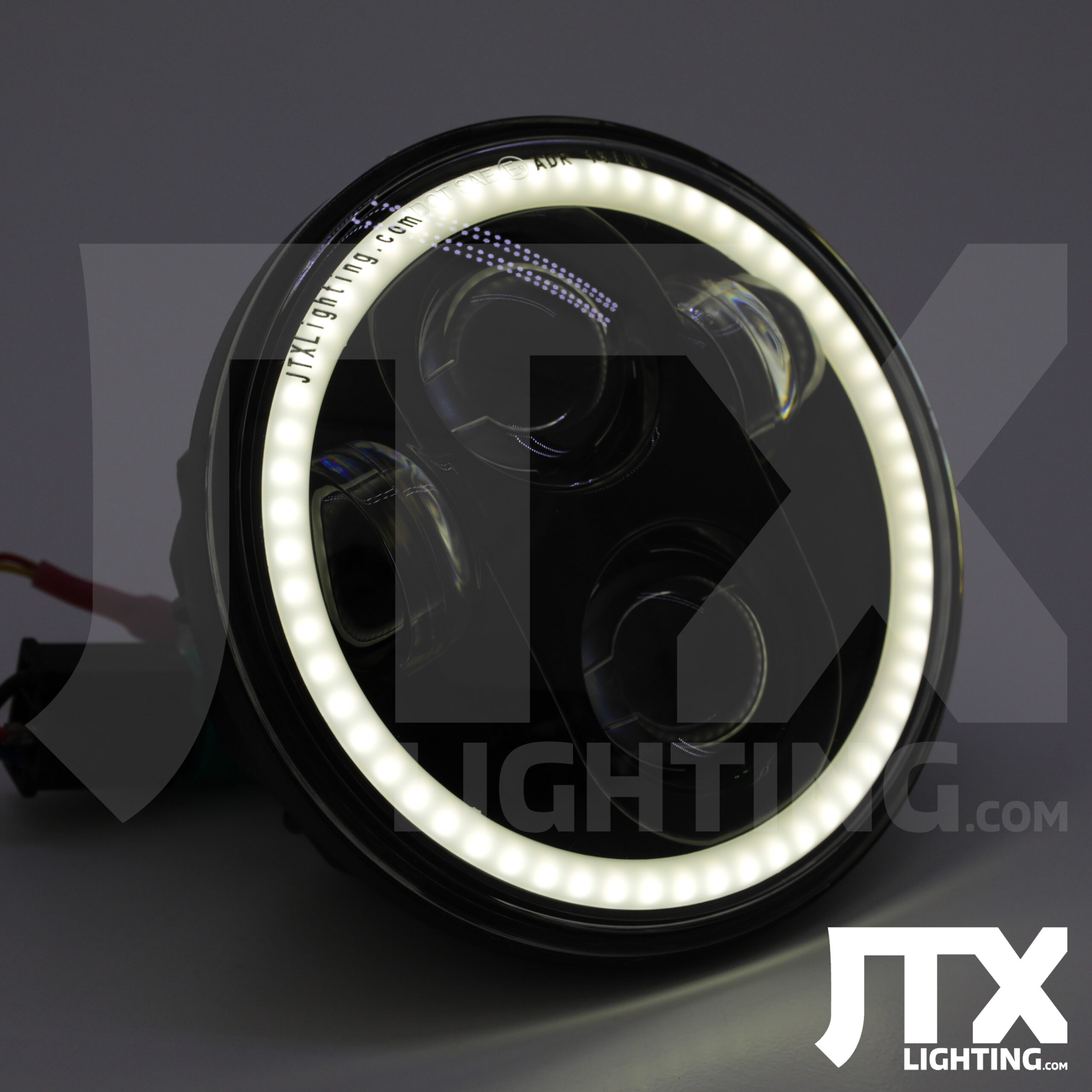

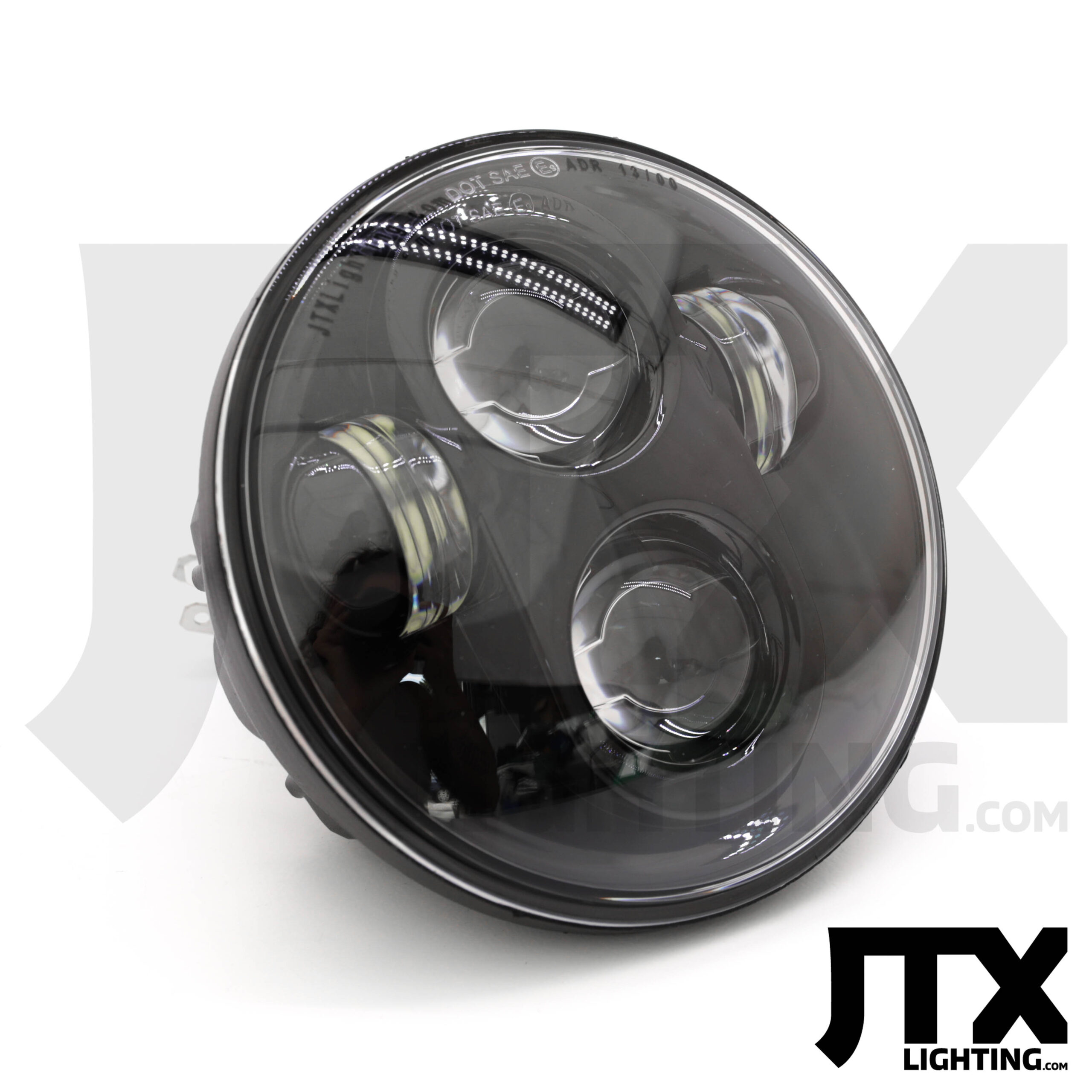

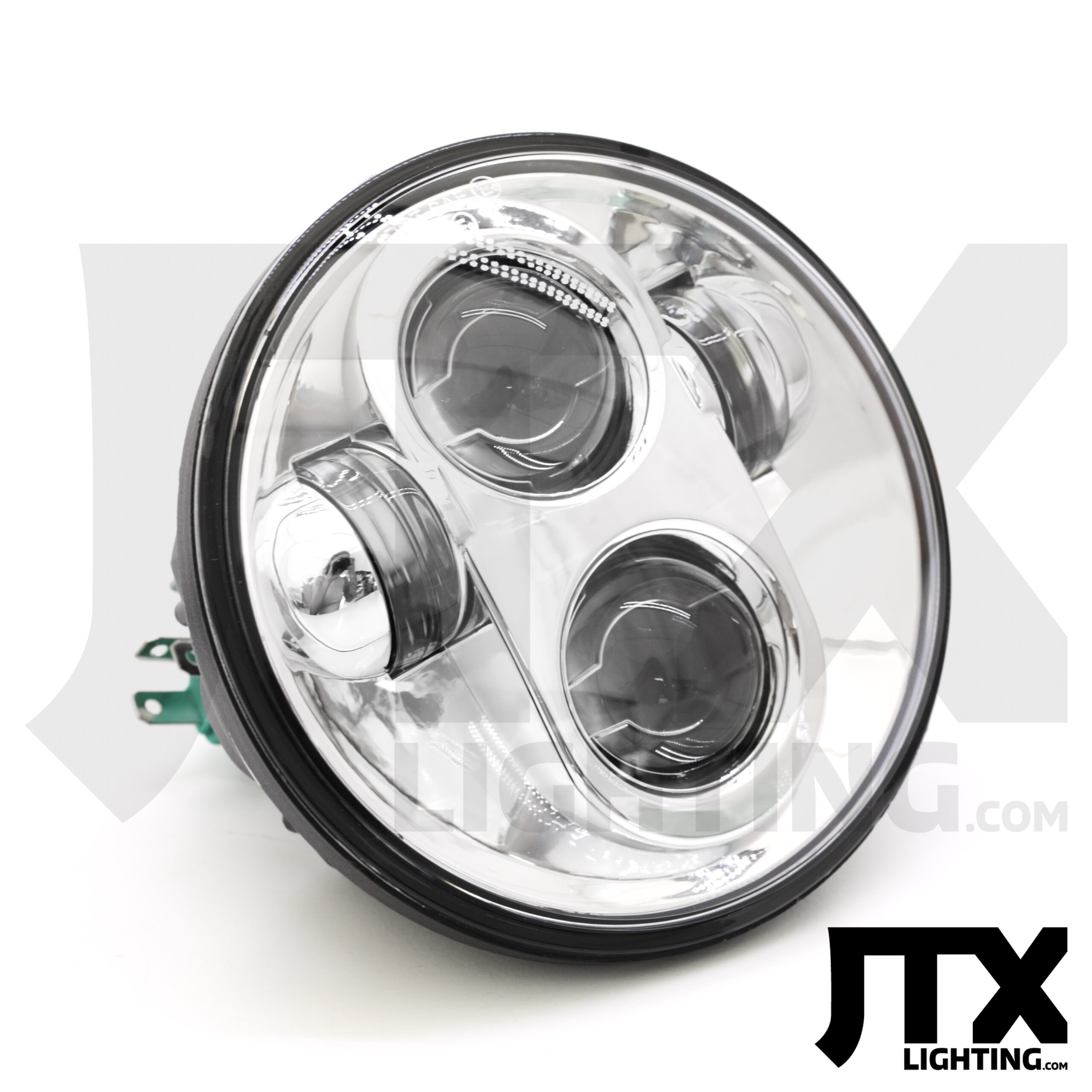

These are 5 3/4″ round headlights and they fit all 5 3/4″ (143mm or 146mm) round applications. If your car has twin round headlights on either side (4 headlights in total), these are the lights for you.
Similar to our 7″ LED Headlights, they feature impressive range, good spread, colourful halos and are indestructible. These draw less power than your regular halogen / HID globes too, and are ADR Compliant, meaning they’re legal in every state.

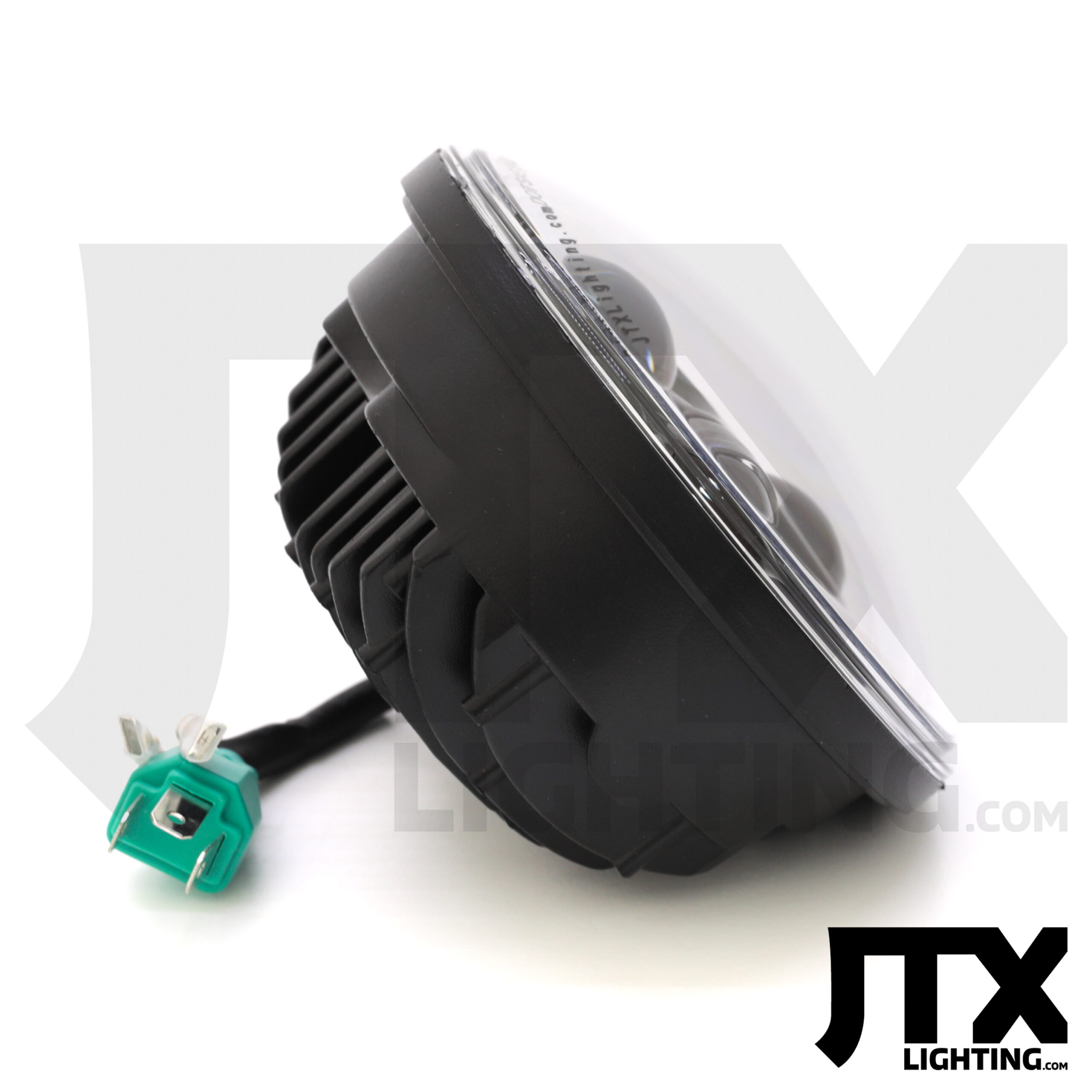

All of our JTX LED headlights are plug and play using your regular 3 pin H4 socket.
JTX LED lights are made by us here in Melbourne. We carry all the components to make up all colour combinations. We make them up and send next day or even same day if we know soon enough. We are the only manufacturer of LED headlights in Australia – please consider supporting Australian businesses.
These are unbreakable. They come with a lifetime warranty, and we will replace a light even if it is damaged in a collision.
They are a direct replacement of your normal 5 3/4″ round sealed or semi sealed head lights. It seemed every type of car was different which created an issue with circuit board re-sizing and also placement and mounting of the projector lenses. So in the end we came up with our universal mounting kit, which replaces your old mounting brackets and come in this kit.
Wiring up the Day Running Lights is very easy They get their earth through the 3 pin H4 headlight socket. The red wire is to power the primary DRL colour, so wire that to the parkers or to a power source that comes on with the ignition. The yellow wire powers the secondary colour which is typically amber in which case connect to indicator or to a separate switch if you have a twin colour set up like red and white.
- With the white/amber version, the DRL Halo will turn off and flash Amber when indicating, two seconds after indicating the DRL comes back on. All other combinations don’t have an indicator option.
- You get an ADR reference sheet with your purchase and according to Qld Dept Transport they are the only ADR Compliant light.
Specs:
- The lights have a depth of 65mm.
- Headlight amp draw: 3A each.
- Halo amp draw: 0.35A each.
Scott (verified owner) –
Lindsay K Mckenzie (verified owner) –
Headlights looking excellent , brackets very good except found measurement in diagram shows 5.5cm from base plate to plate headlight band attaches too but is only 5cm . The 5.5cm matches height of my original headlight buckets so will have to have 5mm spacers made up .
Greg (verified owner) –
Dan (verified owner) –
Very happy as I only needed to make some very small mods to the brackets and plugs to make them fit in my vehicle. So so much better then a standard seal beam lights.
Geoff Lowry (verified owner) –
Great light had to do a few little modifications with the light bucket to fit an HQ premier front
Frank (verified owner) –
The quality is second to none, the description didn’t mention any modifications and my example onto a CM Valiant, major mods need to be done. The brackets supplied are too wide at the base, I do not recommend this to someone with no fabrication experience my lights are still not fitted which is disappointing considering the cost. I will probably have to use something else.
Nicholas (verified owner) –
